High-Precision Machines in Stock
Enhance your gear manufacturing processes with KAPP NILES' immediately available machines. Our gear grinding machines are engineered for exceptional precision in gear finishing, while our advanced measuring machines deliver unmatched accuracy in gear inspection. With short delivery times and in-stock availability in North America, you can keep your production on schedule without compromise. Claim your machine now – they are ready to ship.

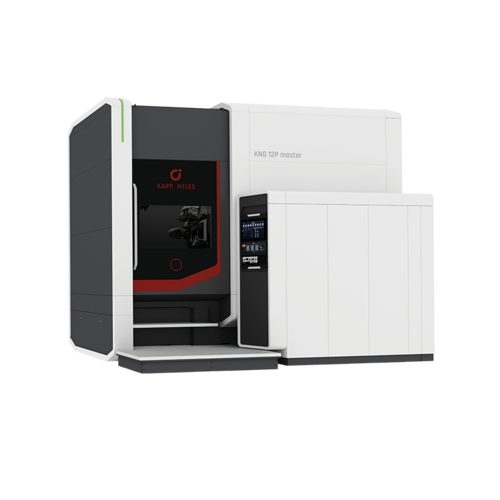

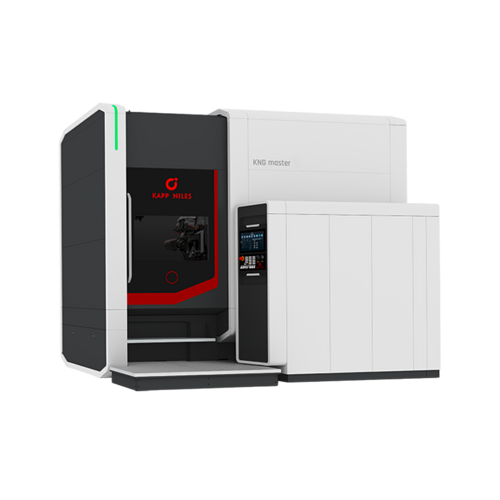

KNG 12P master
Gear centre
The machines in the master series are perfect for high-precision machining of external and internal gears as well as special profiles. The machine concept stands for maximum workpiece quality.
| max. tip diameter [mm] | module range [mm] | batch size | processing method |
|---|---|---|---|
| 1,250 | 0.5 - 35 | prototype to medium series | profile grinding |

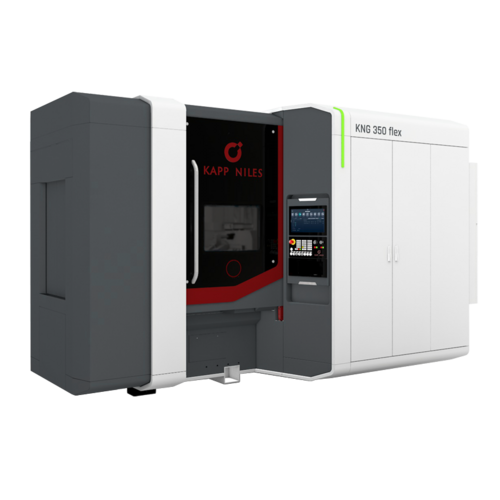

KNG 350 flex
Gear centre
The KNG 350 flex is based on a compact, set-up-optimised machine concept for use in the prototype sector up to large series production. Both externally and internally toothed workpieces can be machined. The performance-optimised grinding spindle with counter bearing is designed also for the use of large grinding worms with widths of up to 200 mm.
| max. tip diameter [mm] | max. workpiece length [mm] | module range [mm] | max. face width [mm] | max. helix angle [deg] |
|---|---|---|---|---|
| 350 (400) | 700* | 0.5 - 8 / 0.5 - 10 | 400 | ±45 |
*depending on the loading system
KX 260 twin
Gear centre
The KX 260 twin gear centre is designed for high-volume gear and shaft production using dressable and non-dressable tools. With dual spindles on a rotary indexing table, one part is machined while another is loaded and aligned.
| max. tip diameter [mm] | max. workpiece length [mm] | module range [mm] | max. face width [mm] | max. helix angle [deg] |
|---|---|---|---|---|
| 260 | 770 | 0.5 - 6 | 320 (520) | ±45 |
KX 500 FLEX
Gear centre
KX 500 flex
Gear centre
The KX 500 flex is a versatile and flexible gear grinding machine, ideal for both generating grinding and profile grinding applications. Designed for medium and high-volume production, it delivers superior precision and reliability.
| max. tip diameter [mm] | max. workpiece length [mm] | module range generating / profile [mm] | max. face width [mm] | max. helix angle [deg] |
|---|---|---|---|---|
| 500 | 1,000 | 0.5 - 8 / 0.5 - 12 | 520 | ±45 |

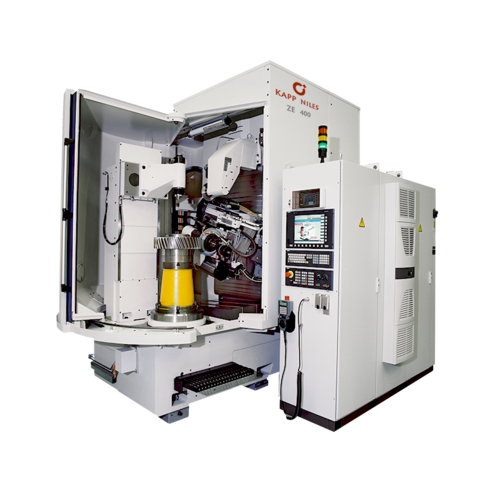

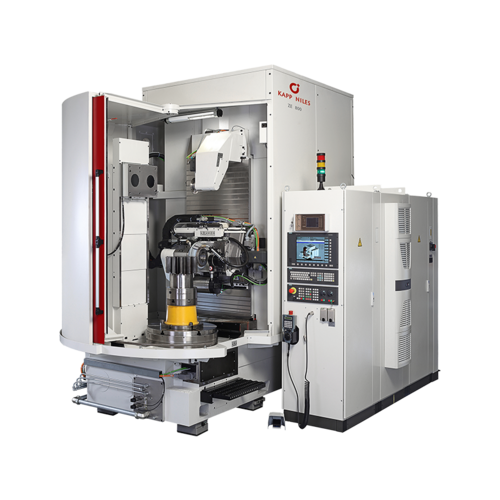

ZE 400 & ZE 800
Gear profile grinding machine
The ZE gear profile grinding machines deliver high-precision machining for external and internal gears. Compact, user-friendly, and versatile, they are ideal for single parts and small-series production.
| max. tip diameter [mm] | max. workpiece length [mm] | module range [mm] | max. face width [mm] | max. helix angle [deg] | |
|---|---|---|---|---|---|
| ZE 400 | 400 (500) | 1,100 | 0.5 - 20 (25) | 400 | -45 / +120 |
| ZE 800 | 800 | 1,100 | 0.5 - 20 (25) | 600 | -45 / +120 |

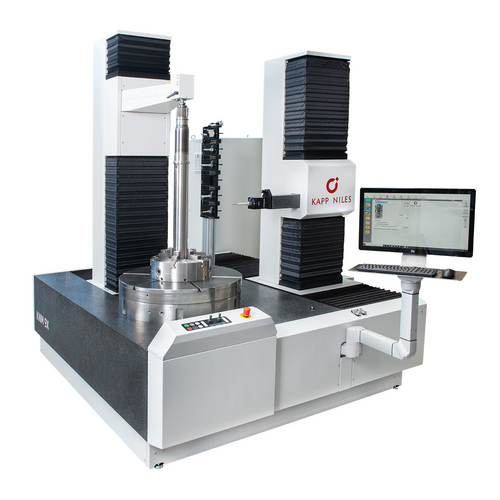

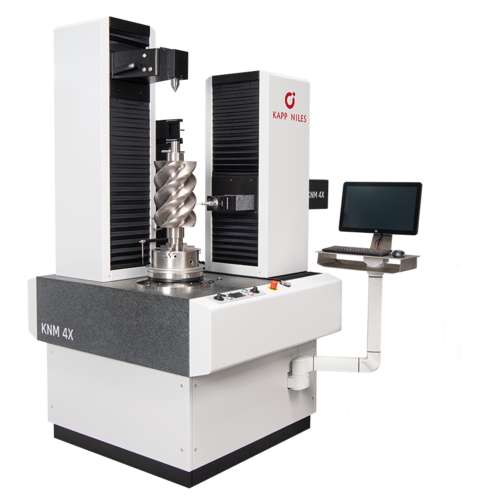

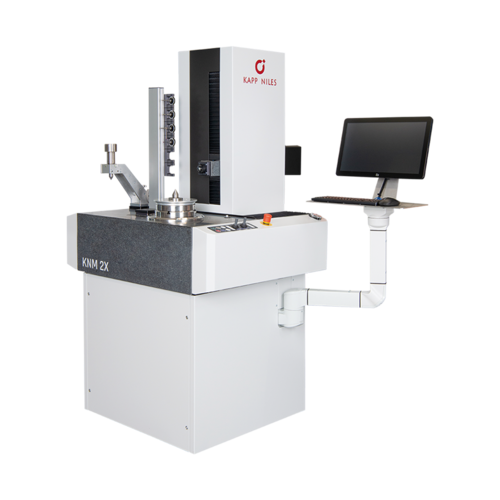

KNM 2X & KNM 4X & KNM 9X
Analytical measuring machine
The analytical measuring machines for ultra-precise gear inspection: Their advanced capabilities ensure accurate measurements of even the most complex gear geometries, making it essential for quality assurance.
| max. workpiece diameter [mm] | max. measurable workpiece length internal / external [mm] | counter support L / D [mm] | max. workpiece weight [kg] |
|---|---|---|---|---|
| KNM 2X | 300 | 450 | 480 / 300 | 80 |
| KNM 4X | 450 | 400 / 650 | 850 / 450 | 500 |
| KNM 9X | 1,250 | 400 / 1,020 | 1,200 / 1,000 | 1,500 |
Secure Your Machine Today!
Fill out the form below to request more information or a personalized quote.
Shane Hollingsworth
Vice President Sales
"We would be happy to discuss our available machines."
