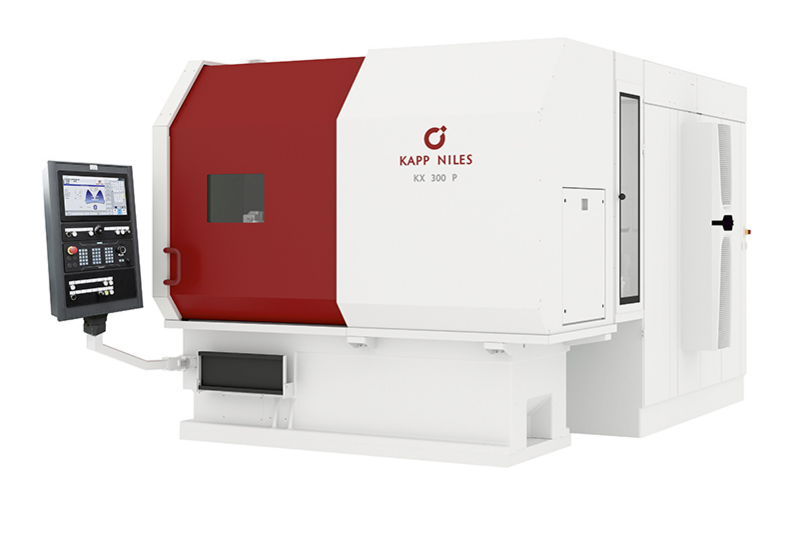

KX 300 P

gear center

Based on different tool and process technologies, user-specific, optimal production solutions can be configured.

The tool spindle with counterbearing can hold dressable and non-dressable grinding worms or profile grinding wheels. Due to the use of auxiliary spindles small ginding wheels up to a minimum diameter of 25 mm can be used.

Machines can be loaded either manually or automatically. The use of an integrated ring loader allows short loading times for both bore and shaft parts.

  max. tip
diameter [mm]
max. workpiece
length [mm]
module range [mm] max. face
width [mm]
max. helix
angle [deg]
KX 300 P 350 800 0.5 - 8.0 0.5 - 10.0 320 ± 45
