Dressing tools

Diamond profile rolls and diamond form rolls

  • Long service life due to highly wear-resistant CVD inserts
  • Highest profile precision possible
  • Repeatedly regrindable and replateable tools

Diamond profile rolls and diamond form rolls for generating grinding

For flexible or topological dressing of vitrified corundum grinding worms or dressable CBN worms.

For serial production, an integrated tip dresser is used for defined grinding of the gear root area.

A separate, high-precision version is available for electromobility applications.

Diamond form rolls for profile grinding

Diamond form rolls for profile grinding

in sintered design for profiling dressable profile grinding wheels

Either as an economic version with natural diamond or as a long life tool with handset CVD diamond. These tools can be reground several times and are characterised by a long life time.

A special, high-precision version is offered for electric mobility applications.

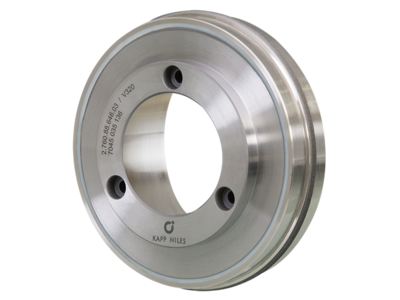

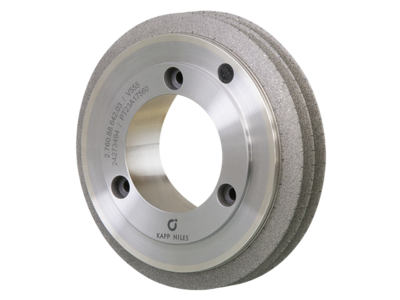

Multi-ribbed diamond profile rolls for generating grinding

Multi-ribbed diamond profile rolls for generating grinding

for high efficiency dressing of vitrified grinding worms in large batch production

Full profile rolls are produced in galvanically negative design for a wide range of modules and rib numbers.

Diamond dressing gears for gear honing

Diamond dressing gears for gear honing

for profiling dressable honing rings

This type of tool is also available as a tool set consisting of dressing gear and integrated tip dressing roll to move back the tip of the tooth at the honing ring.
