ZPI

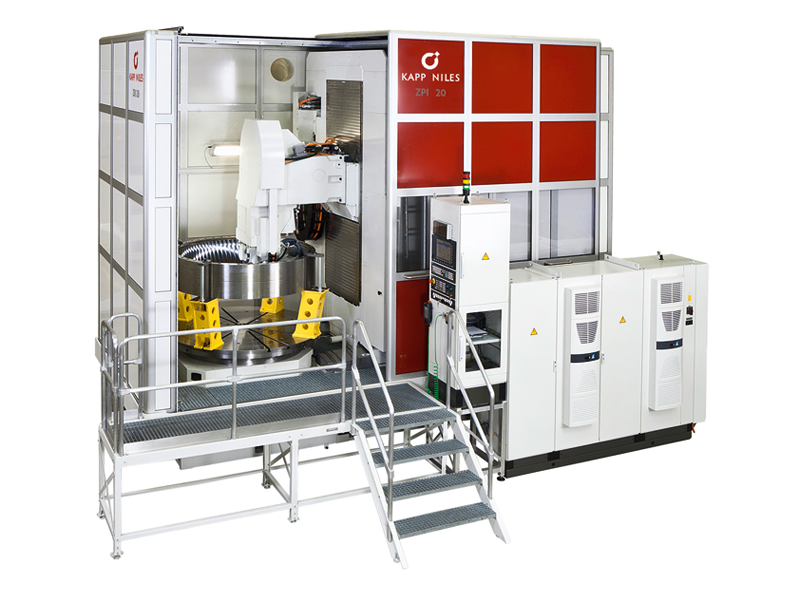

Gear profile grinding machines

	ZPI 30 / 40
max. workpiece diameter	3,000 / 4,000 mm
max. root diameter	2,500 / 3,000 mm
max. module	40 (45) / 45 mm
max. face width	1,000 mm
max. helix angle	±35 degrees

The machines of the ZPI model are developed for profile grind-ing of highly precise internal gears with large modules. Especially the series production in the wind energy sector requires higher stiffness and stronger grinding power. A heavy internal grinding device was developed especially for this purpose, with the greatest emphasis on the rigidity of the grinding spindle bearing. The measuring device is permanently integrated in the grinding head which leads to a reduction of set-up times to a minimum.

Key features of the ZPI model

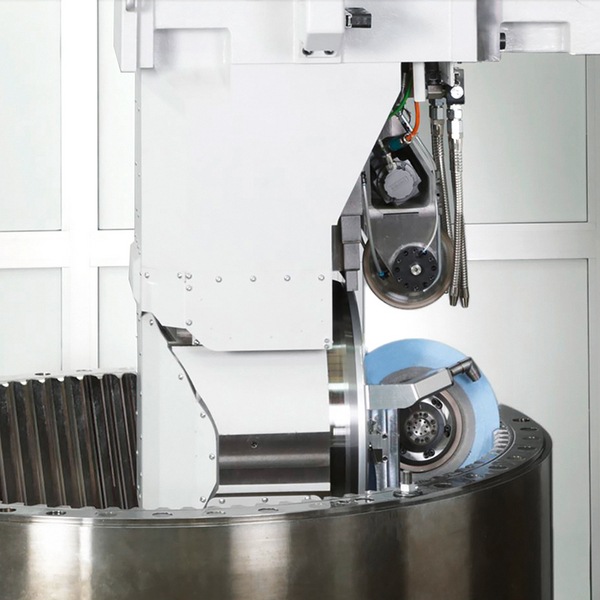

Grinding of internal gears
Wobble compensation
Grinding head with double spindle dresser
