KNM X series
Measuring machines for large workpieces
| max. workpiece diameter | 6,000 mm |
| measurable workpice length | 1,000-2,100 mm |
| number of machine axes | 3+1 / 4+1 |
| max. workpiece weight | 1,500 - 40,000 kg |
* customised design

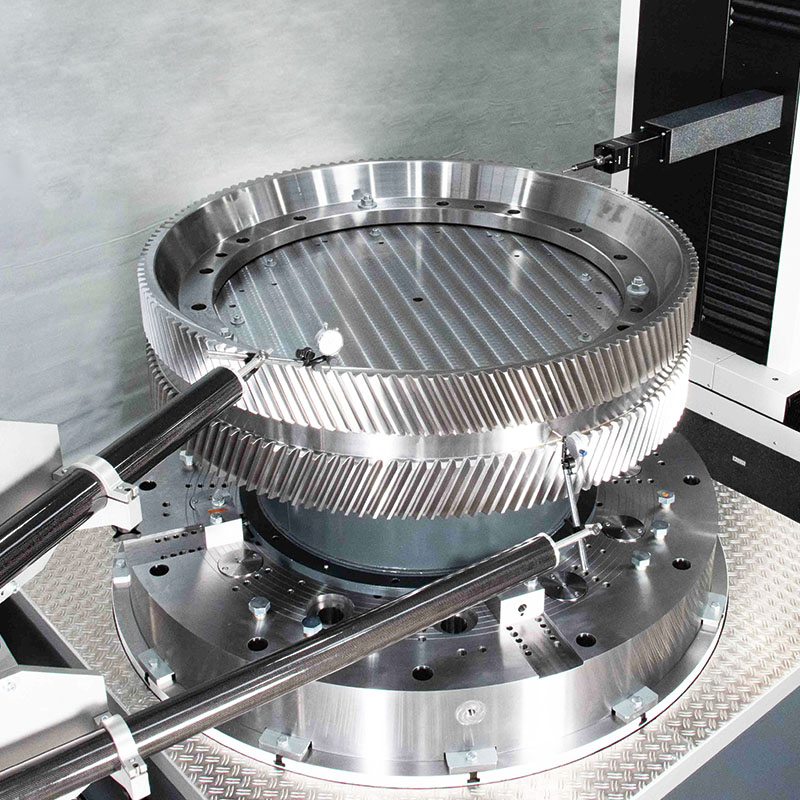

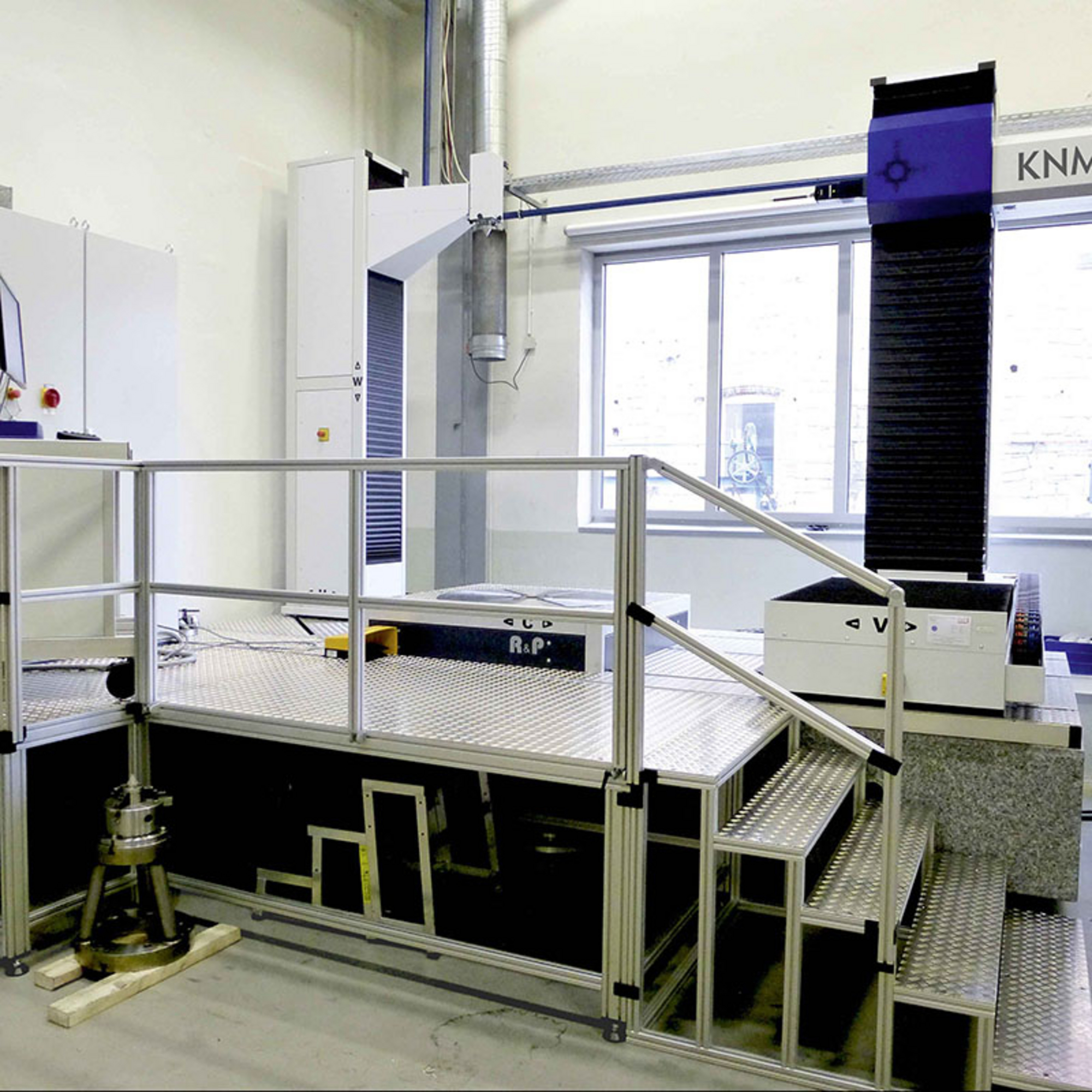

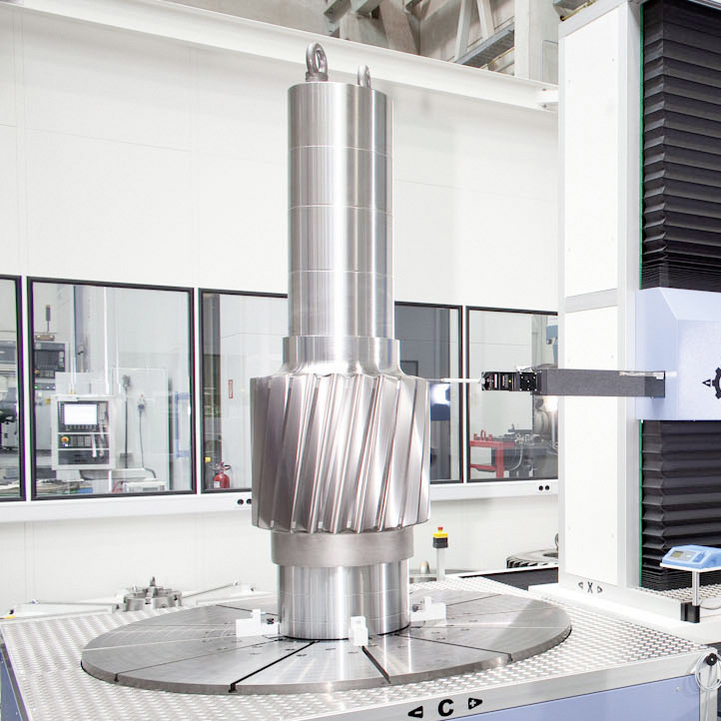

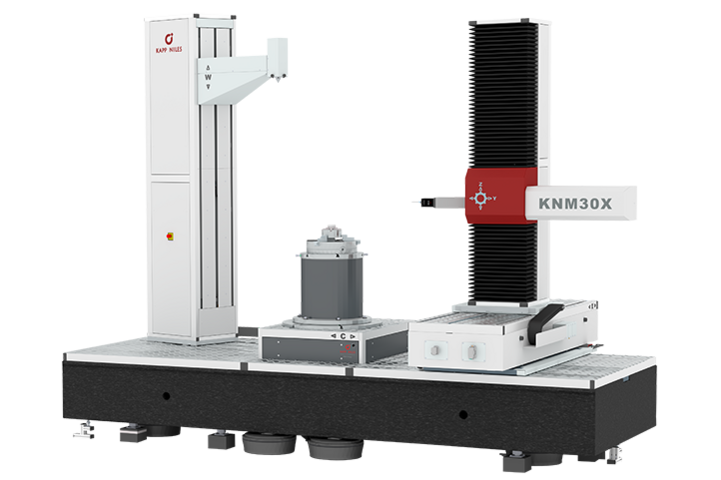

According to customer-specific requirements, the KNM X series can be either designed as a stationary machine for medium and larger sized gears, or as a docking station. For this purpose, any size of the machine base can be combined with a rotary table and a transportable 3-axes measuring device.
The KNM X machines boast high-precision mechanics with optimal accessibility, laser-based safety equipment, large bearing clearances and generously dimensioned guiding cross-sections.
Linear motors are used in all linear axes. High-precision rotary tables with air or hydrostatic bearing (diameter of 500 to 1,800 mm) feature direct drives / through-holes. Controlled air spring elements underneath the base plates safely shield from jolts and vibrations. Separate bases are not required. The use of drives close to the centre of gravity ensures a low level of dynamic distortions.
Key features of the KNM X series
- No separate foundation required in the measurement or production area
- For the use in various applications, e.g. spur gears, bevel gears, shafts, tools, bearing rings

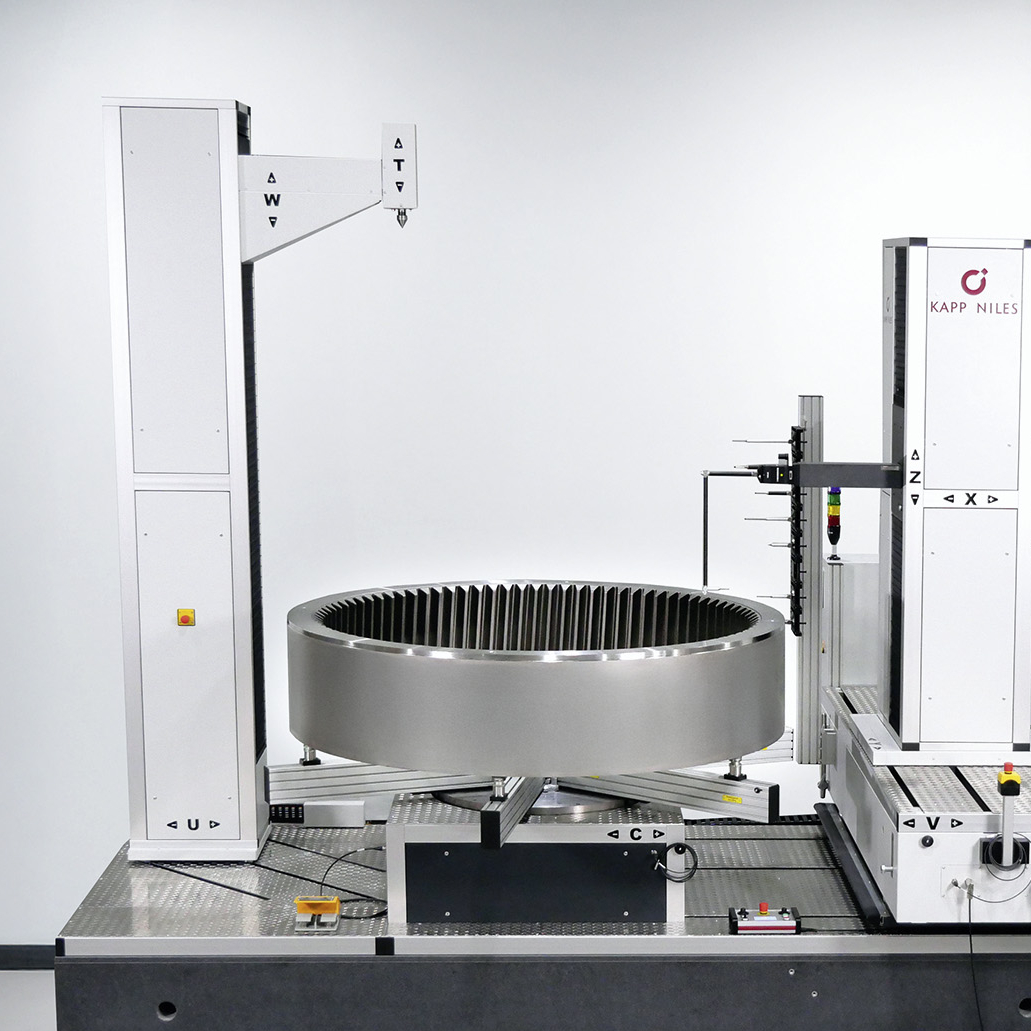

- Motor-driven positioning of the measuring unit (V-axis) to the current workpiece diameter
