surface measuring technology

carrying out highly accurate roughness measurements on a CNC-controlled Mahr surface measuring station

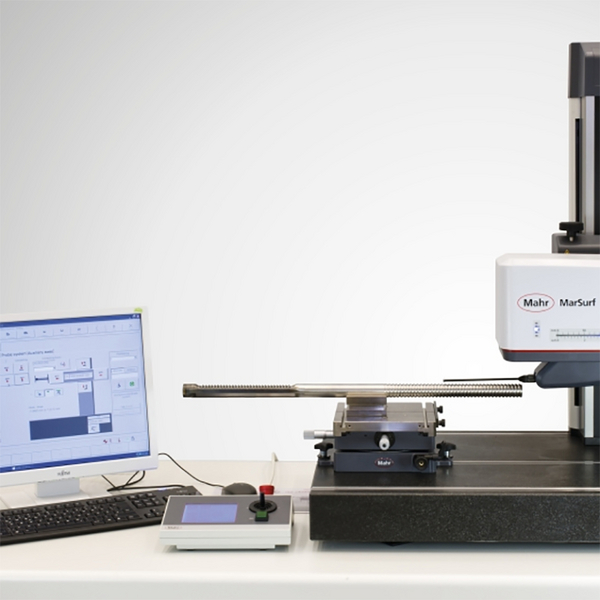

CNC-controlled surface measuring station

Application area:

  • surface measurments on cubic components
  • surface measurments on gears or special profiles (also all tooth measurments possible)
  • topography measurements and Evaluation
  • contour measurement and evaluation

 Technical data

hardware equipment NC rotary table up to 12.5 kg, in 3-axis sliding Y-table
operating system Windows
software equipment MarShell, MarSurf MfM, MarSurf XR20, MarSurf XT 20, MarSurf XC20
